Single Point Load Cell IN-651E

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

Name: Single Point Load Cell IN651E
Brand: Innovation
Price: 1 USD

Place of Origin : China load cell

Model Number : IN-651E

Brand Name : Innovation

MOQ : 1 pc

Price : USD1-USD100

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/MONTH

Delivery Time : 7-15DAYS

Packaging Details : CARTON

Capacity : 500/1000/2000g

Material : Aluminum

Contact Now

Single point load cell IN651E

Aluminum

Creep precision up to 0.005% Single Point Load Cell IN-651E

PARAMETER	UNIT	TECHNICAL DATA
Rated capacity (Emax)	g	500/1000/2000
Huazhun Grade		A	B
Sensitivity	mV/V	1.0+- 10%
Zero balance	mV/V	0.02
Creep over 30min	%	0.008	0.012
Temperature effect on zero	%/	0.0040
Temperature effect on output	%/	0.0012
Hysteresis	%	0.01 0.012
Linearity deviation	%	0.01	0.012
Repeatability	%	0.01	0.012
Nominal temperature range		-10 to +40
Service temperature range		-30 to +70
Limit load	% of R.C.	150
Break load	% of R.C.	200
Nominal excitation	V	5 ~12
Max. excitation	V	15
Input impedance		405+- 10
Output impedance		350 +-3
Insulation resistance	M	>2000
Cable length	M	0.35
Cable type		4 conductors, Braid Shielded, Black PVC Jacket
Color code		+Exc-Red, +Sig-Grn, -Exc-Blk, -Sig- Wht
Construction		Aluminum
Protection class to IEC529		IP 66

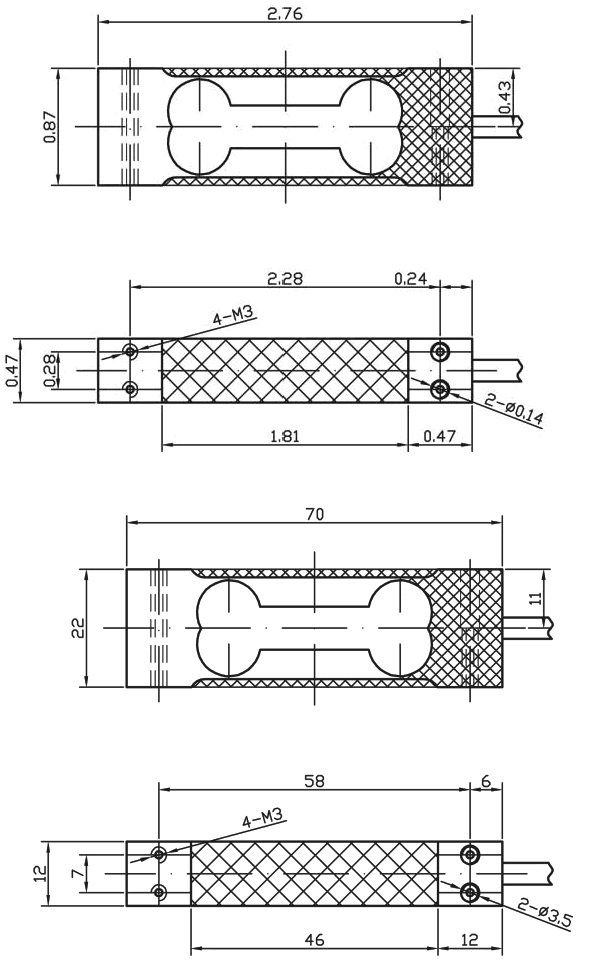

Single Point Load Cell IN-651E Images
